Dry Type Transformers for Power Distribution Projects
Reliable dry type transformers designed for indoor and safety-critical environments.
Factory-direct supply with engineering-driven technical support.
Rated capacity up to 2500 kVA
Voltage level up to 35 kV
Manufactured under ISO quality management system

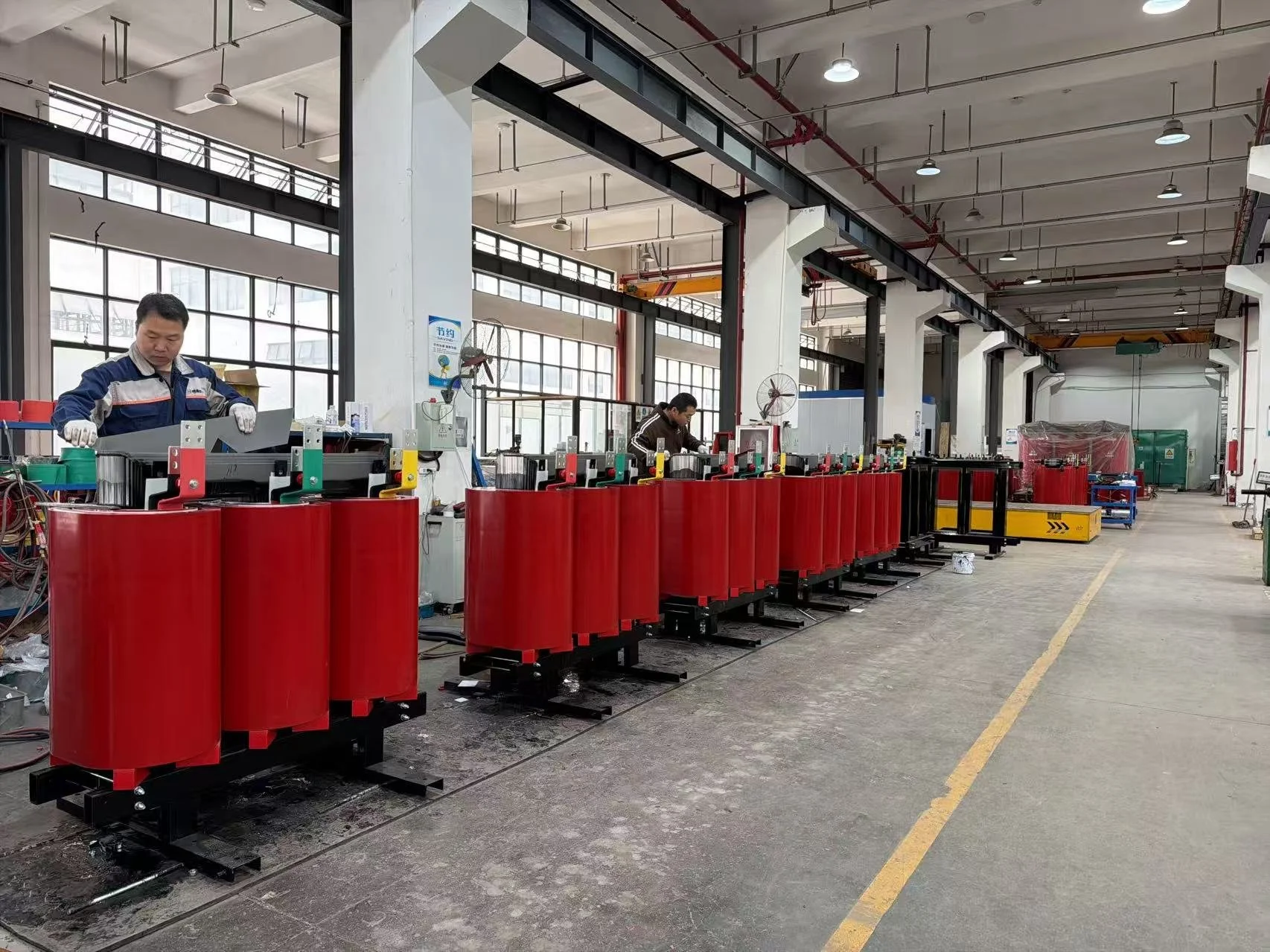

Dry type transformer assembly & testing in factory

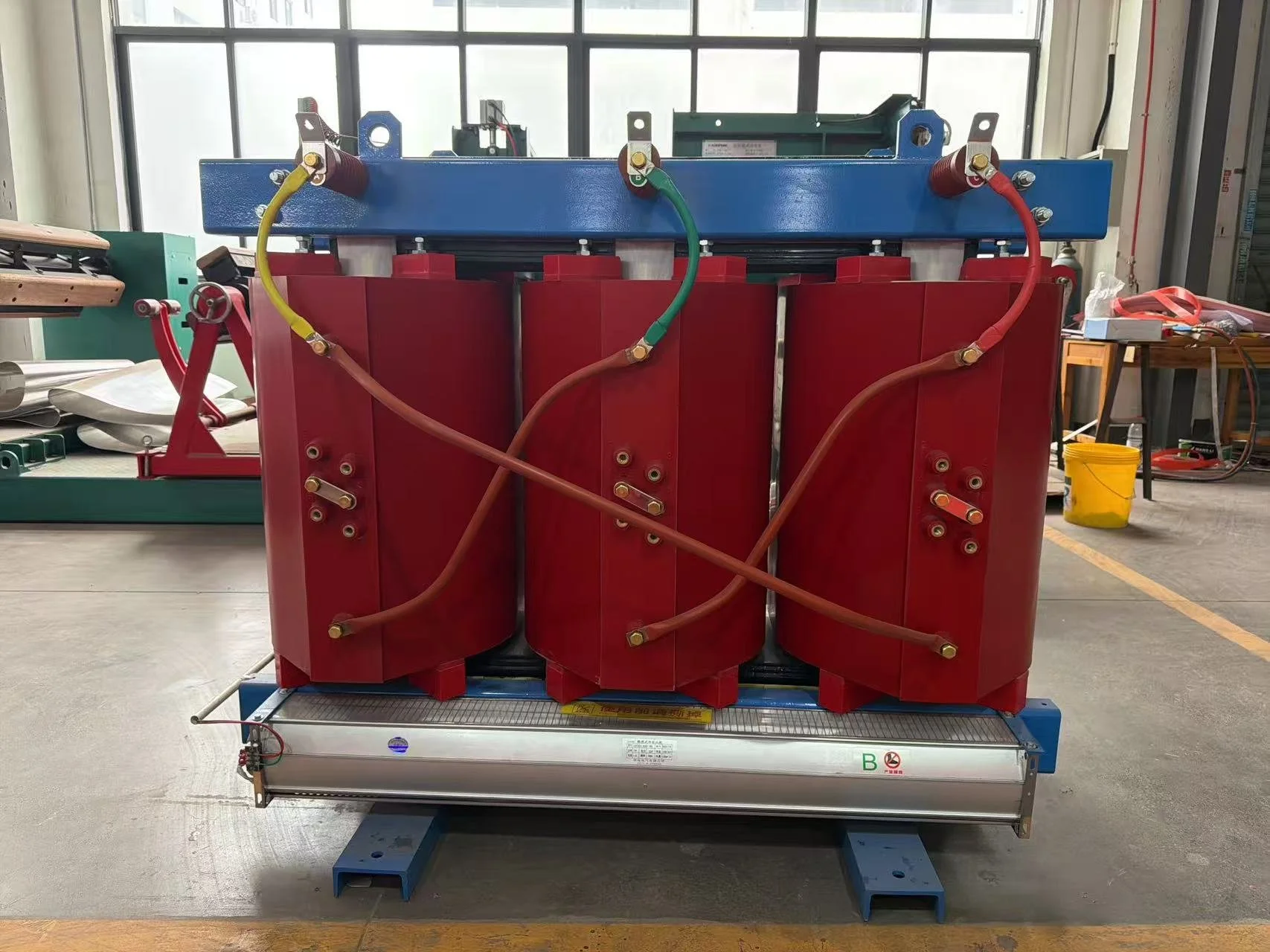

Dry Type Transformer Overview
Our dry type transformers are designed for projects where fire safety, indoor installation and low maintenance are critical requirements.
With no oil insulation, they eliminate the risk of oil leakage and fire hazards, making them especially suitable for commercial buildings, industrial facilities, infrastructure projects and renewable energy systems.
Stable performance, compact design and long service life allow reliable operation in densely populated or safety-sensitive environments.
WHY CHOOSE OUR DRY TYPE TRANSFORMER
Designed for safety, reliability and long-term project performance.
🔥 Fire Safety & Installation Flexibility
Our Dry Type Transformer
Oil-free insulation design eliminates leakage and fire risks, making it suitable for indoor and safety-critical installations.
Conventional Solutions
Require strict fire protection measures and limited installation environments.
🛠️ Lower Maintenance & Lifecycle Cost
Our Dry Type Transformer
No oil testing or oil replacement required,
reducing maintenance workload and long-term operating costs.
Conventional Solutions
Regular inspection and oil maintenance are required throughout the service life.
⚙️ Stable Performance Under Continuous Load
Our Dry Type Transformer
No oil testing or oil replacement required,
reducing maintenance workload and long-term operating costs.
Conventional Solutions
Regular inspection and oil maintenance are required throughout the service life.
🏗️ Project-Oriented Customization
Our Dry Type Transformer
Capacity, voltage level, enclosure and protection class
can be customized to match project requirements.
Conventional Solutions
Limited flexibility for non-standard or project-specific demands.
Technical Specifications
Electrical Ratings
Rated capacity: 100 kVA – 2500 kVA
Rated voltage: Up to 35 kV
Frequency: 50 / 60 Hz
Insulation class: F / H
Design & Installation
Cooling method: AN / AF

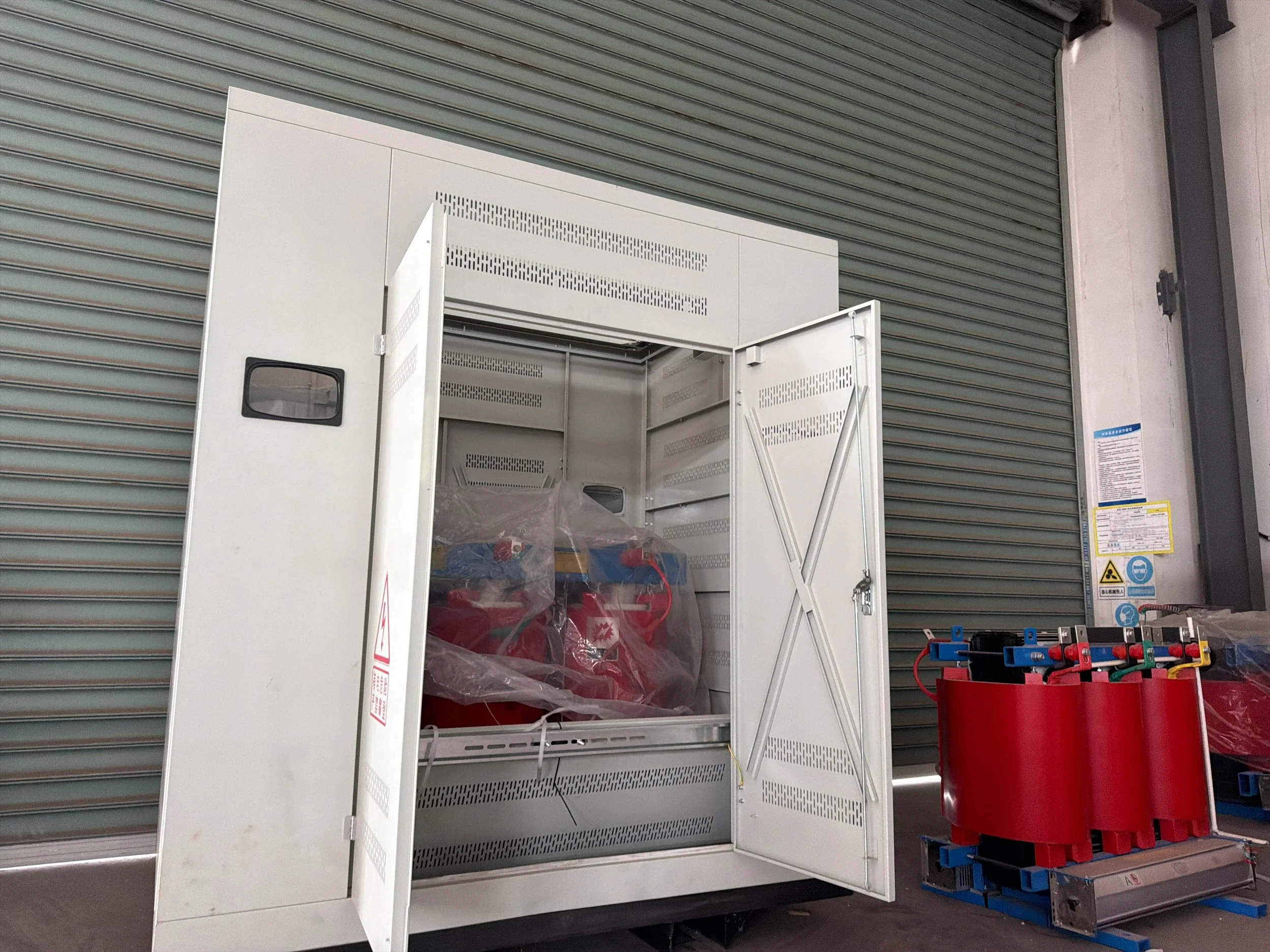

Installation: Indoor / Outdoor (with enclosure)
Standard: IEC / GB
Ambient temperature: Up to 40°C (customizable)
DESIGN & PERFORMANCE FEATURES
Cast resin or vacuum pressure impregnated (VPI) winding options
Optimized cooling duct design for effective heat dissipation
Low partial discharge and low noise operation
Moisture-resistant insulation suitable for humid environments
Compact structure for space-limited installations
TYPICAL APPLICATIONS & SCENARIOS
Commercial buildings & hospitals
Data centers & power distribution rooms
Industrial plants
Renewable energy systems

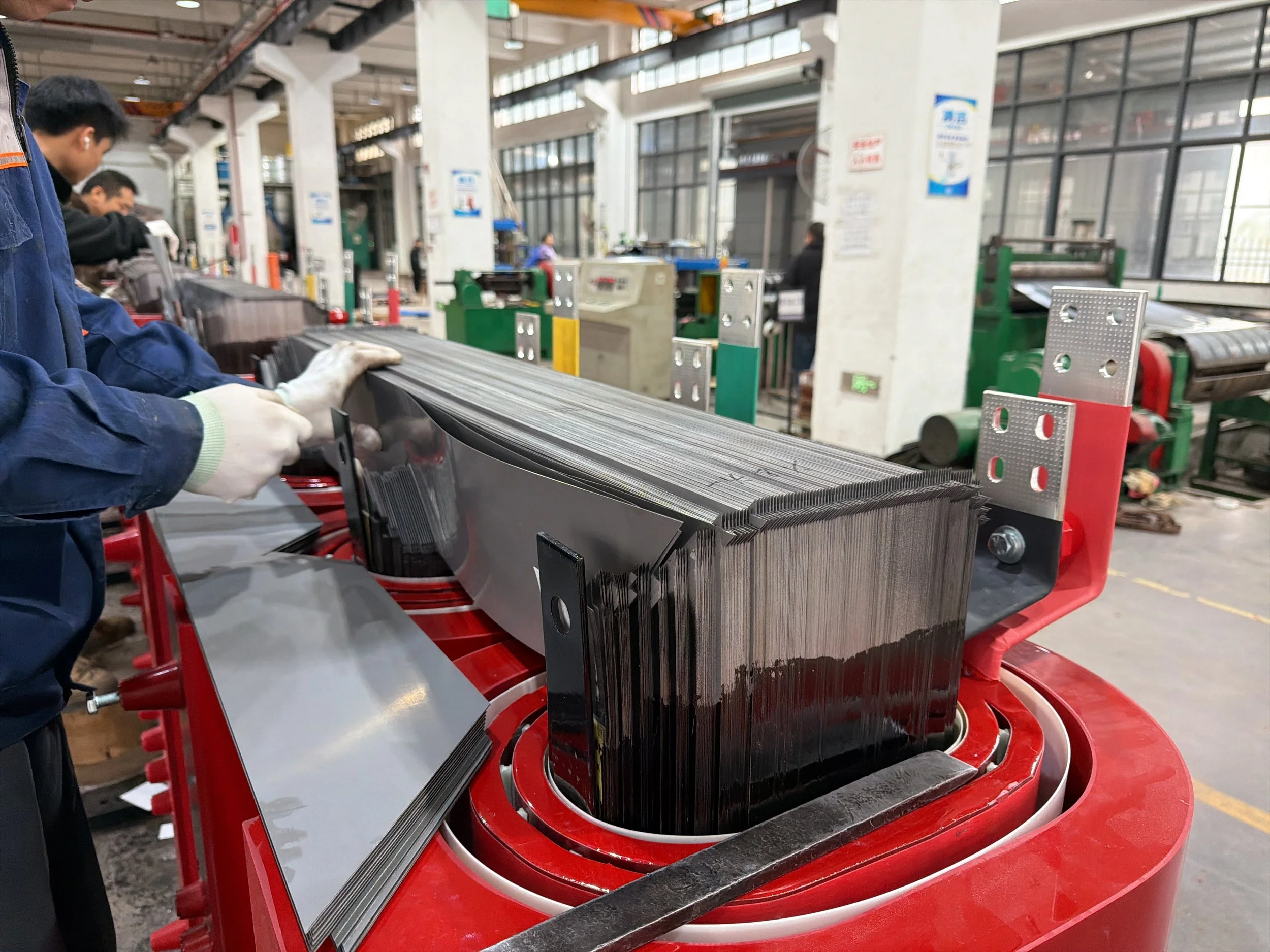

Quality Control & Manufacturing
ISO-certified manufacturing facility

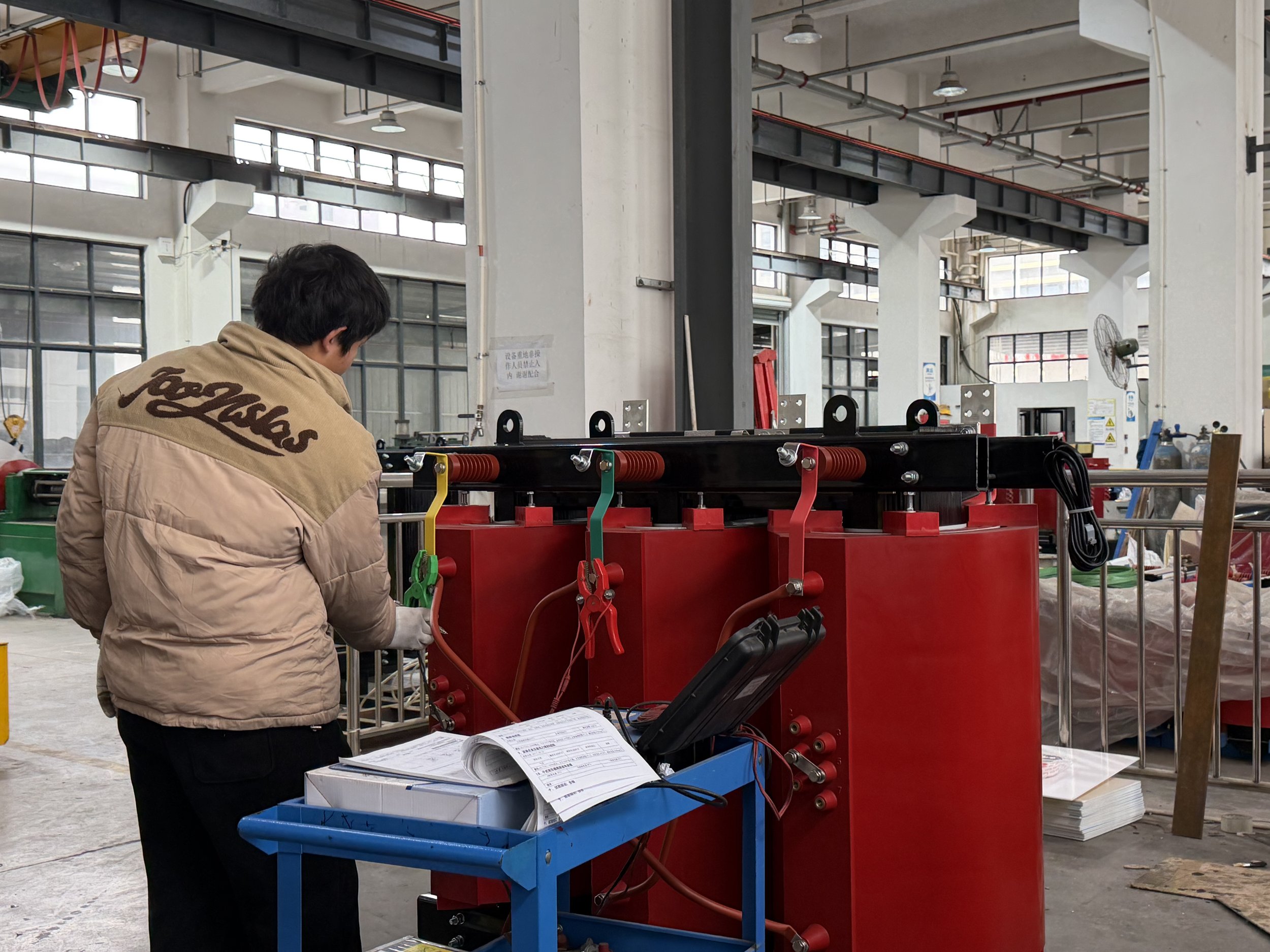

Routine testing before shipment
Project-based production and quality control
Certifications
Certifications vary by product model and project requirements.
ISO 9001 Quality Management System
CE compliance for selected models
Additional certifications can be provided upon request for specific projects.
REQUEST A TECHNICAL SOLUTION
for Your Project
To help us provide an accurate and fast solution, please share:
Rated capacity (kVA)
Primary / Secondary voltage
Installation & application environment
Destination country / region
Not sure about all details? Our engineers will assist you step by step.
